175 Amp – 48/56V AD244/DR44 Mount

Battery Cables

When upgrading from an OEM to an SBC high-output alternator, you should upgrade the positive and negative (ground) cables to handle the increased current.

Please refer to our Wire Sizing Chart for recommended gauges.

WIRE SIZING CHART

Product Categories

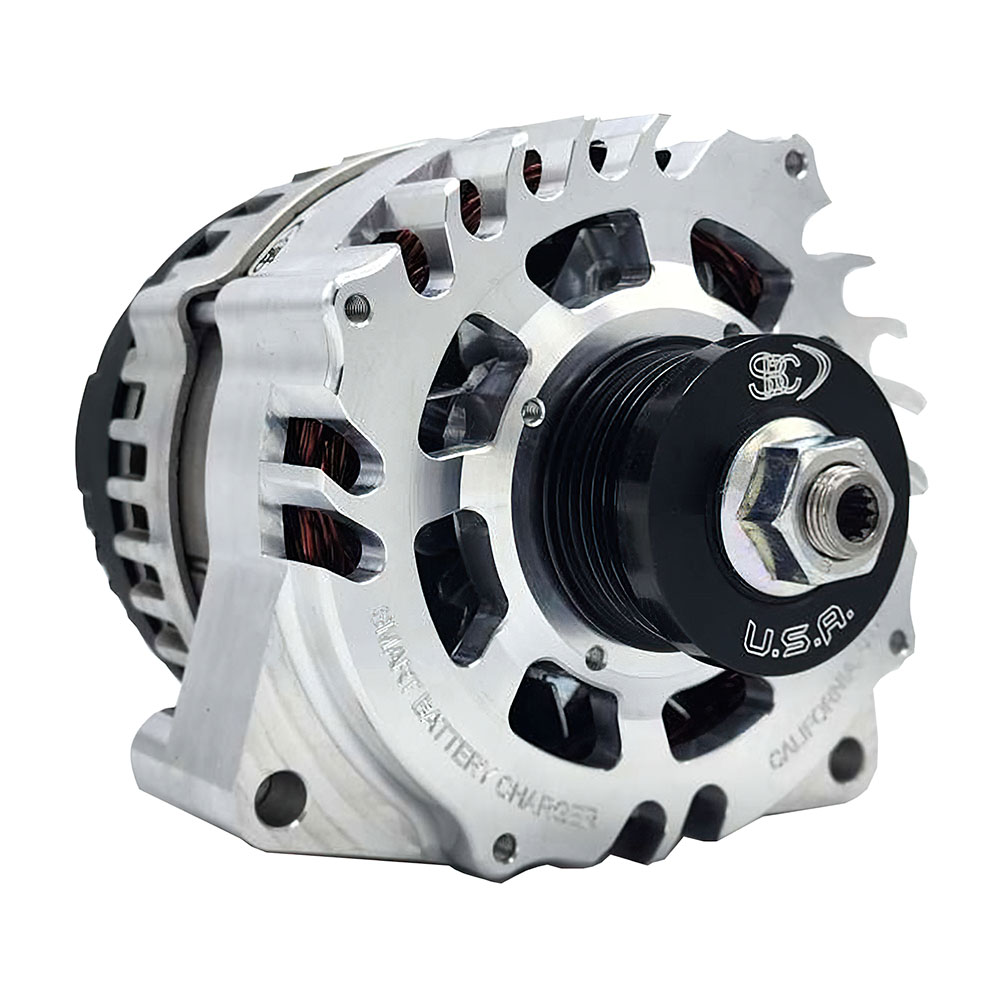

175 Amp - 48/56V AD244/DR44 Mount

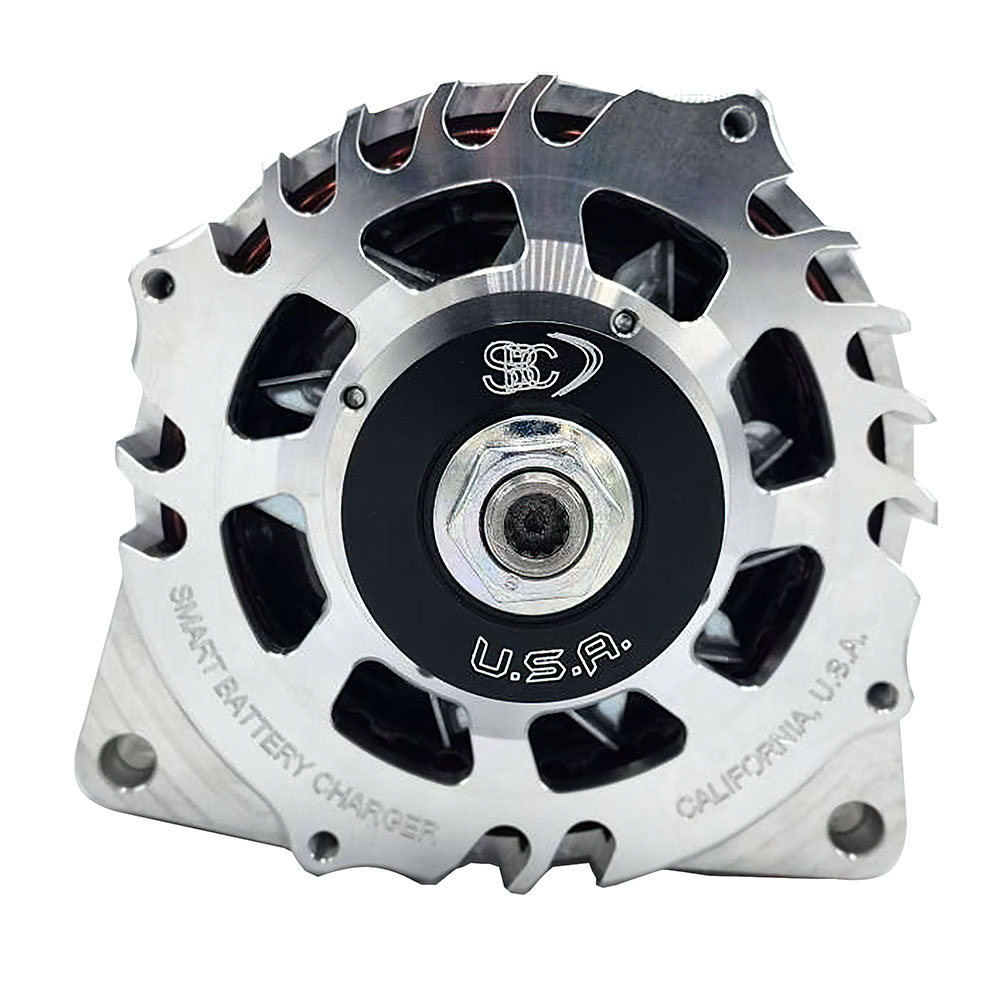

175 Amp - 48/56V AD244/DR44 Mount - Image 2

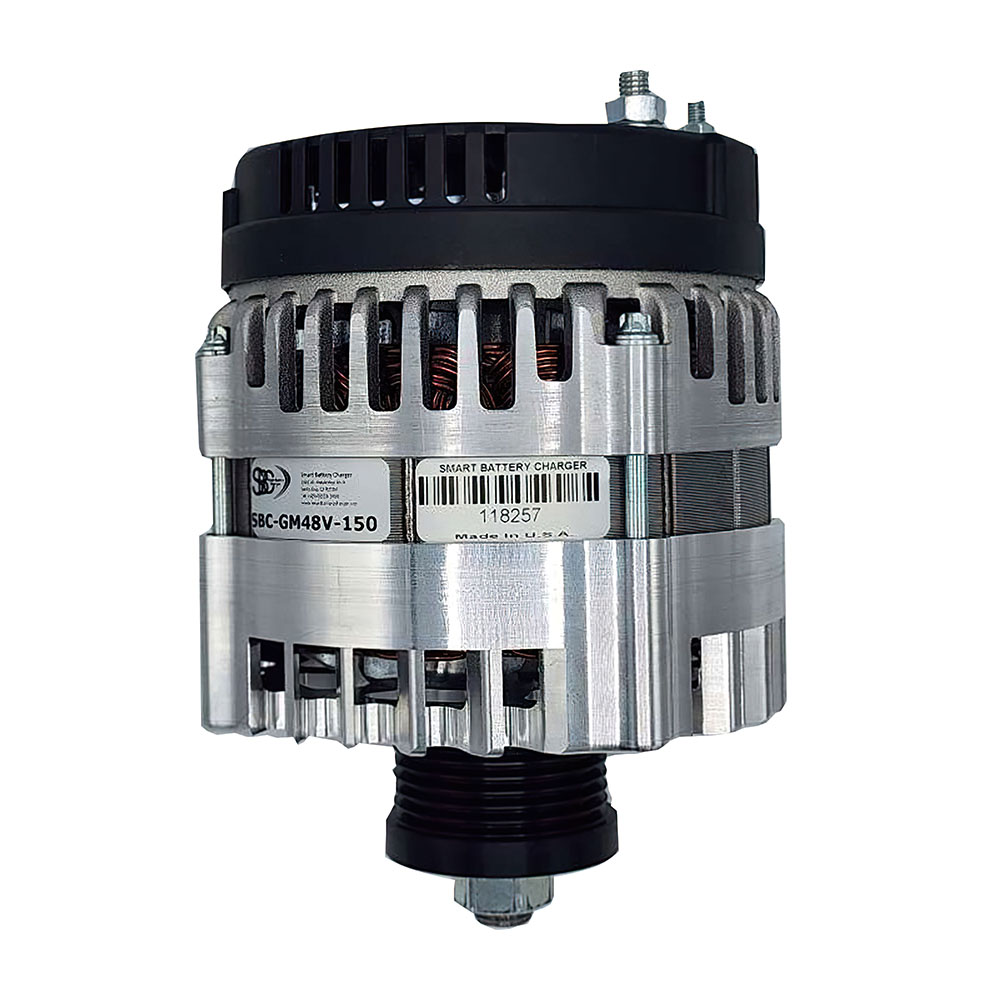

175 Amp - 48/56V AD244/DR44 Mount - Image 3

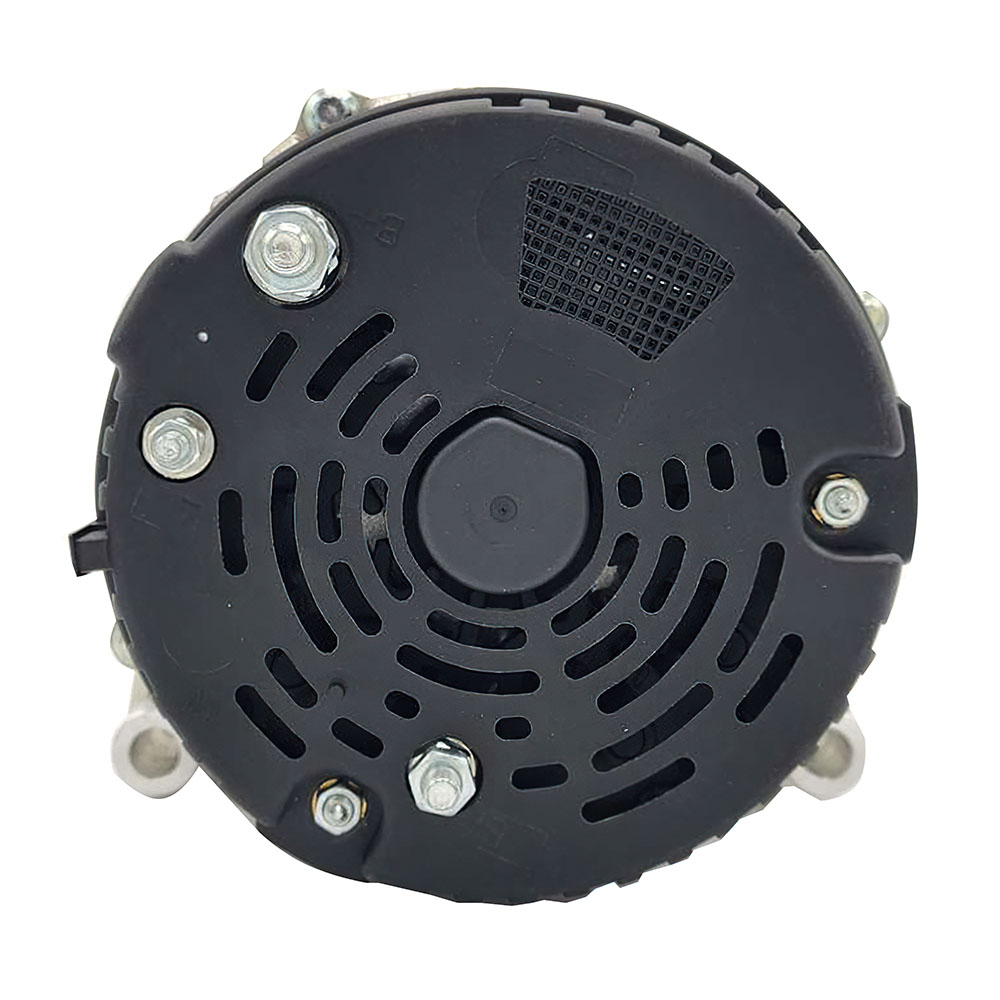

175 Amp - 48/56V AD244/DR44 Mount - Image 4

The SBC-GM48V-175 is a 48 Volt alternator that produces up to 175 amps. It is an air-cooled, externally regulated alternator that installs in GM AD244/DR44 OEM mounting locations or in SBC dual and triple alternator kits.



Idle Output: 20 Amps
Max Output: 175 Amps
Voltage: 48 to 57 Volts

Add to Quote
SKU: 6fab6e3aa342-1-1-1-1-1-1-1-1-2-1-3-2-1-1-3-1-3-1-3-1-4-2-2-3-1-3-1-1-1-4-1-2-1 Category:

The SBC-GM48V-175 heavy-duty 48V alternator generates a maximum of 175 amps and ~20 Amps at idle (may vary between applications and configurations).



Designed specifically to be used with the Balmar MC-620 external regulator, the SBC-GM48V-175 can meet all charging requirements of LiFePO4 and Lithium-Ion batteries such as calibrated charging profiles and thermal and load protection.



This is required for optimal performance and reliability when using advanced battery systems.

Key specifications:



  • Idle Output: 20 Amps
  • Max Output: 175 Amps



applications:



  • GM AD244/DR44



Full specifications:



  • Output Voltage: 48
  • Maximum Amperage: 175
  • Amps @ Engine Idle: 20
  • Mounting: AD244/DR44
  • Rotation: Clockwise or Counter-clockwise
  • Housing Material: 6061 Aircraft Grade Aluminum
  • Ground: Case
  • Regulation: External
