180 Amp – 7.3L Power Stroke

Battery Cables

When upgrading from an OEM to an SBC high-output alternator, you should upgrade the positive and negative (ground) cables to handle the increased current.

Please refer to our Wire Sizing Chart for recommended gauges.

WIRE SIZING CHART

Product Categories

180 Amp - 7.3L Power Stroke
180 Amp - 7.3L Power Stroke - Image 2
180 Amp - 7.3L Power Stroke - Image 3
180 Amp - 7.3L Power Stroke - Image 4

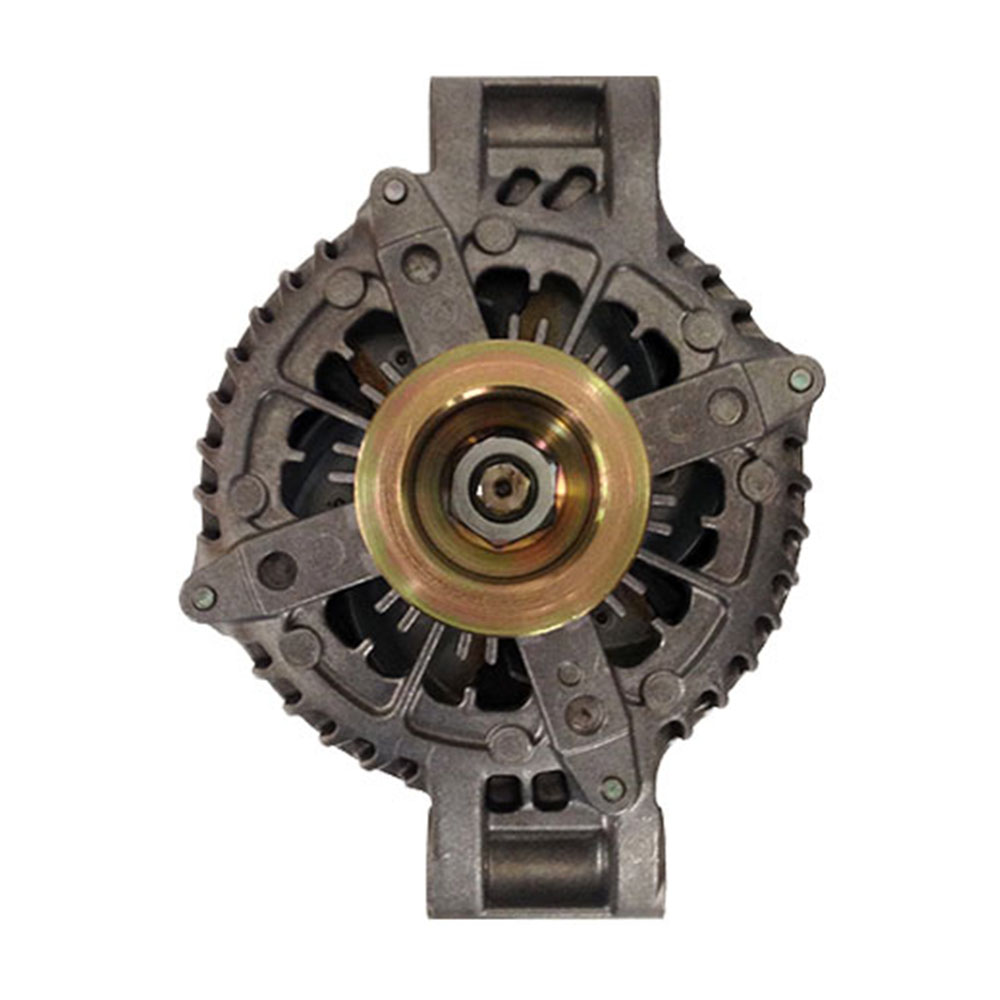

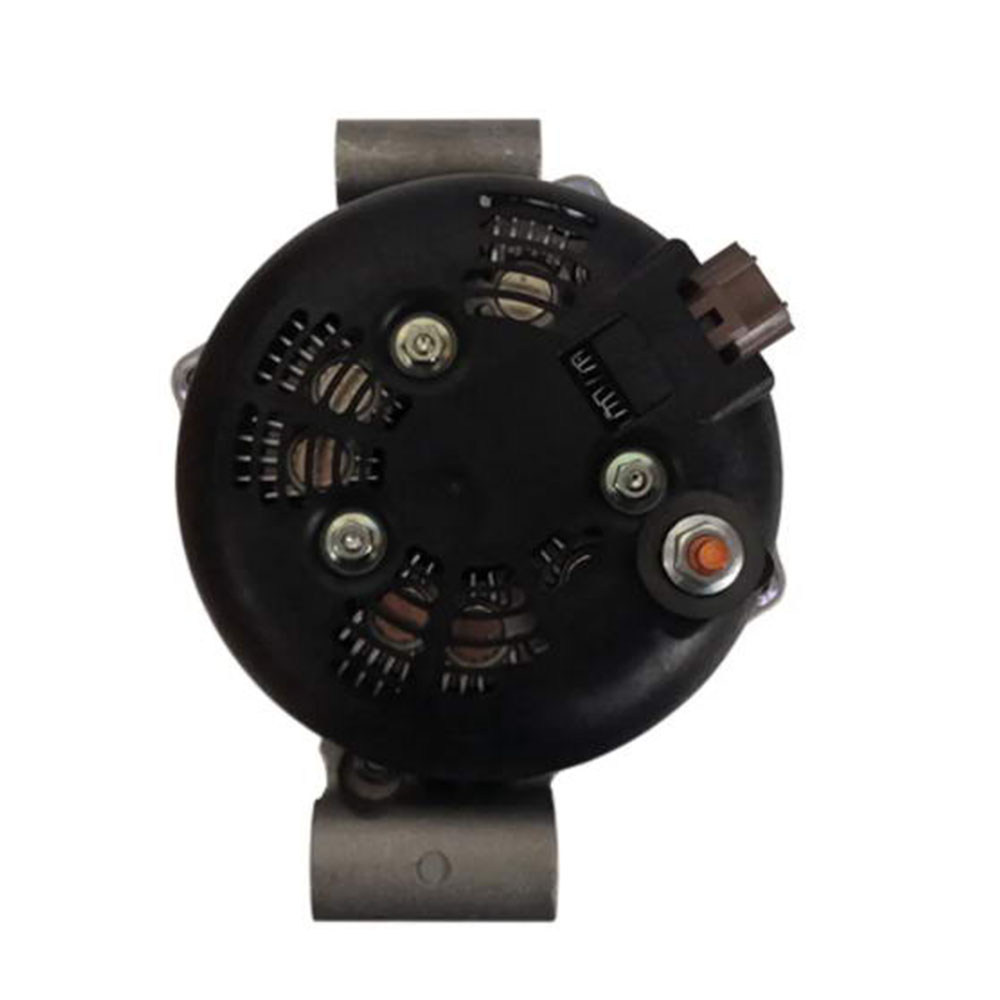

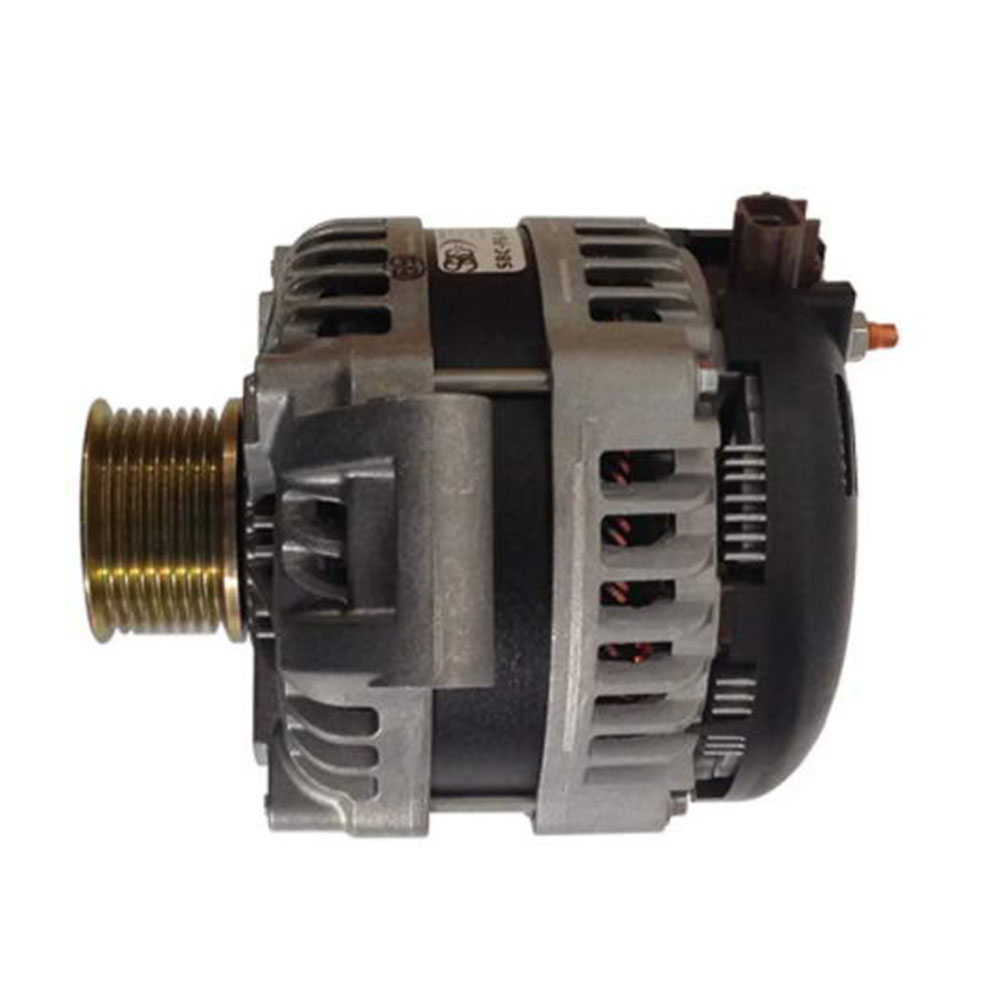

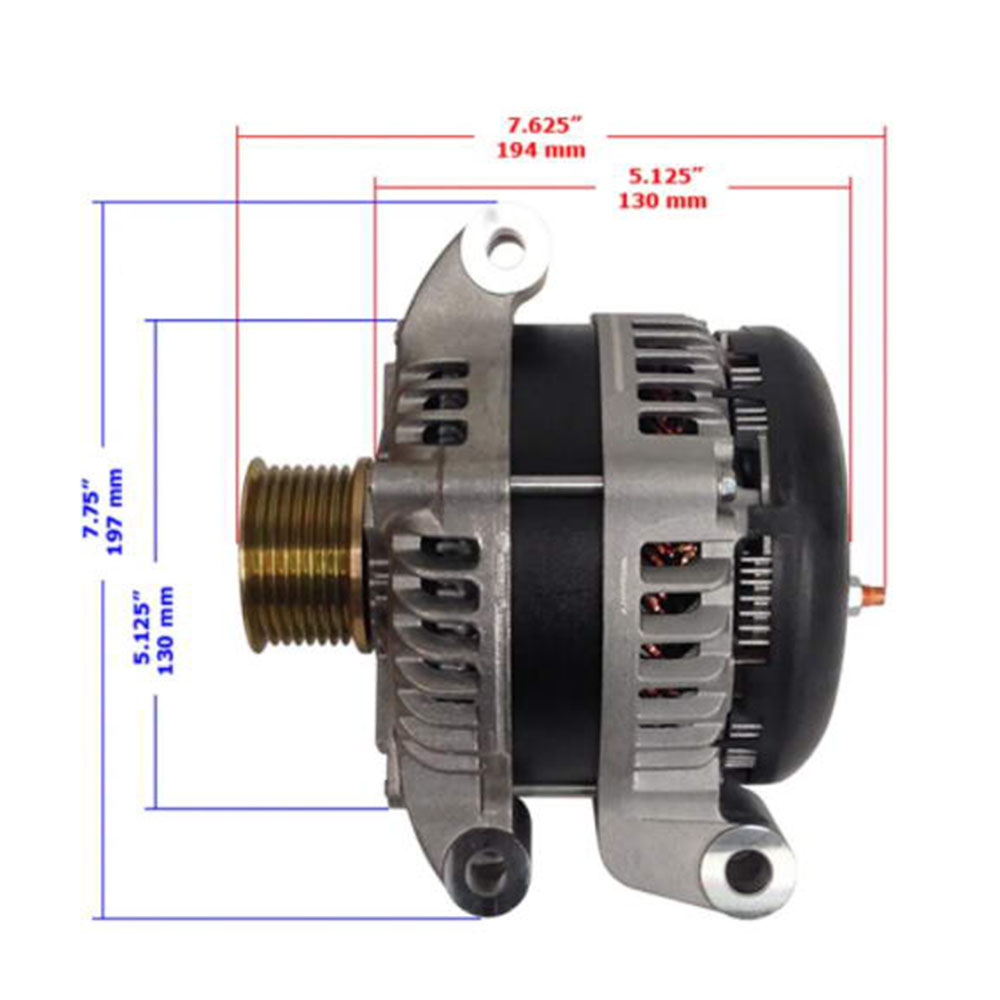

This SBC-F7.3D-180 heavy-duty alternator generates a maximum of 180 Amps at normal driving speeds and produces 130 Amps at idle.



  • Idle Output: 130 Amps
  • Max Output: 180 Amps
Add to Quote
SKU: 6fab6e3aa342-1-1-1-1-1-1-1-1-2-1-3-2-1-1-3-1-3-1-3-1-4-2-2-3-1-3-1-1-1-4 Category:

This SBC-F7.3D-180 heavy-duty alternator generates a maximum of 180 Amps at normal driving speeds and produces 130 Amps at idle. They feature larger housing while still retaining OEM fitment without any modification required. They run cooler and are virtually indestructible.



This alternator is designed to be an exact replacement to the OEM alternator for the 7.3L Ford Powerstroke Diesel engine and will directly bolt-on with no modifications necessary.
A precision machined, hard anodized pulley made from Aircraft Certified 6061 aluminum is installed on each alternator for maximum output and durability.



AVAILABLE WITH CLUTCH PULLEY.

  • Mounting Type: OEM Fitment
  • Output Voltage: 14.8
  • Idle Amperage: 130
  • Hot Idle Amperage @ 200° F: 120
  • Max Amperage: 180
  • Hot Max Amperage @ 200° F: 160
  • Doesn’t Affect Vehicles PCM, Check Engine Light or Charge Light: Yes – Direct Plug-In OEM PCM Compliant
  • Stator Configuration: 6 Phase Hairpin
  • Average A/C Ripple Current: 8 Amps
  • Positive Output Stud Size: 8mm X 1.25 Copper
  • Temperature Compensation: Yes With 3-Step Thermal Protection
  • Rectifier: 12 40 Amp Press Fit Diodes
  • Rectifier Heatsink: Aluminum
