BALMAR 24V

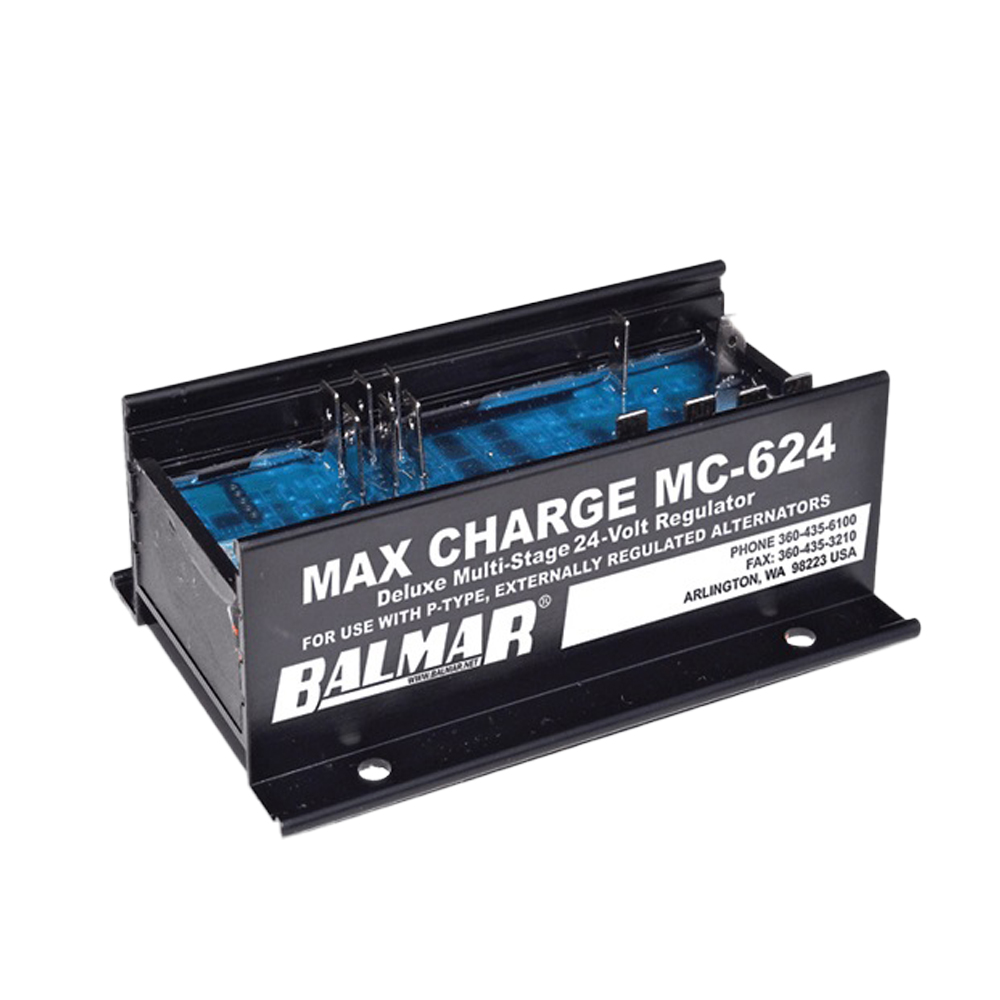

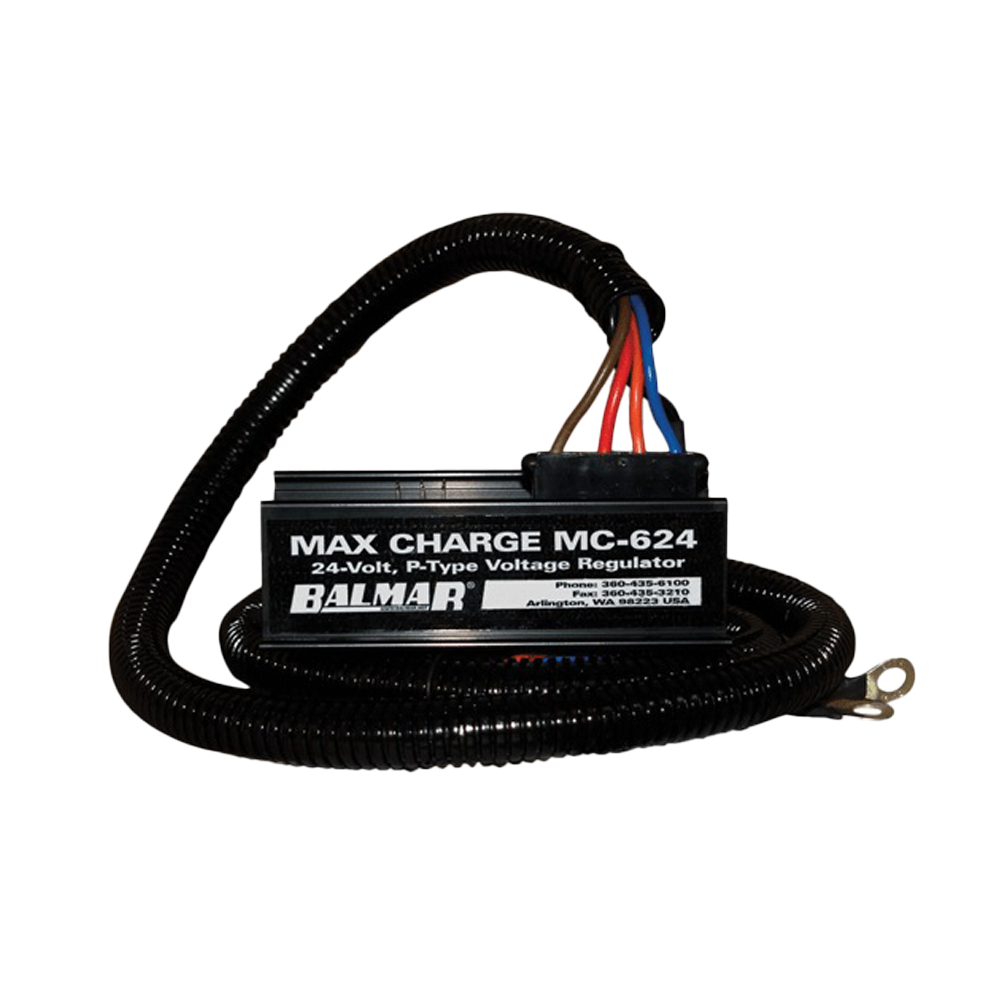

Balmar Max Charge MC-624 features a wealth of advanced programming modes that make it possible to tailor charging to a wide variety of environments. When used in conjunction with optional MC-TS-A and MC-TS-B alternator and battery temperature sensors, the MC-624 features the ability to monitor and respond to a range of ambient temperature conditions, including reduction or discontinuation of charging voltages, should a catastrophic over-temperature condition occur at the alternator or the batteries. It can also protect Lithium batteries from being charged when the temperature falls below freezing.

When connected to an SG200 Battery monitor via SmartLink™, The following is available from the SG200’s Color Display:

1. MC-624 real-time operating data
2. Battery Type Selection (Basic Programming)
3. Adjustment of the Maximum Field % (Belt Load Manager)

When an SG2-0300 Bluetooth Gateway is used in conjunction with the SG200 + MC-624, even more features are unlocked via the Balmar App:

1. Real-time monitoring of the MC-624 performance
2. Full Basic and Advanced Programming from a phone or tablet
3.  Save and Load program settings
