TWIN 48/56V 200 Amps

Battery Cables

When upgrading from an OEM to an SBC high-output alternator, you should upgrade the positive and negative (ground) cables to handle the increased current.

Please refer to our Wire Sizing Chart for recommended gauges.

WIRE SIZING CHART

Product Categories

TWIN 48/56V 200 Amps

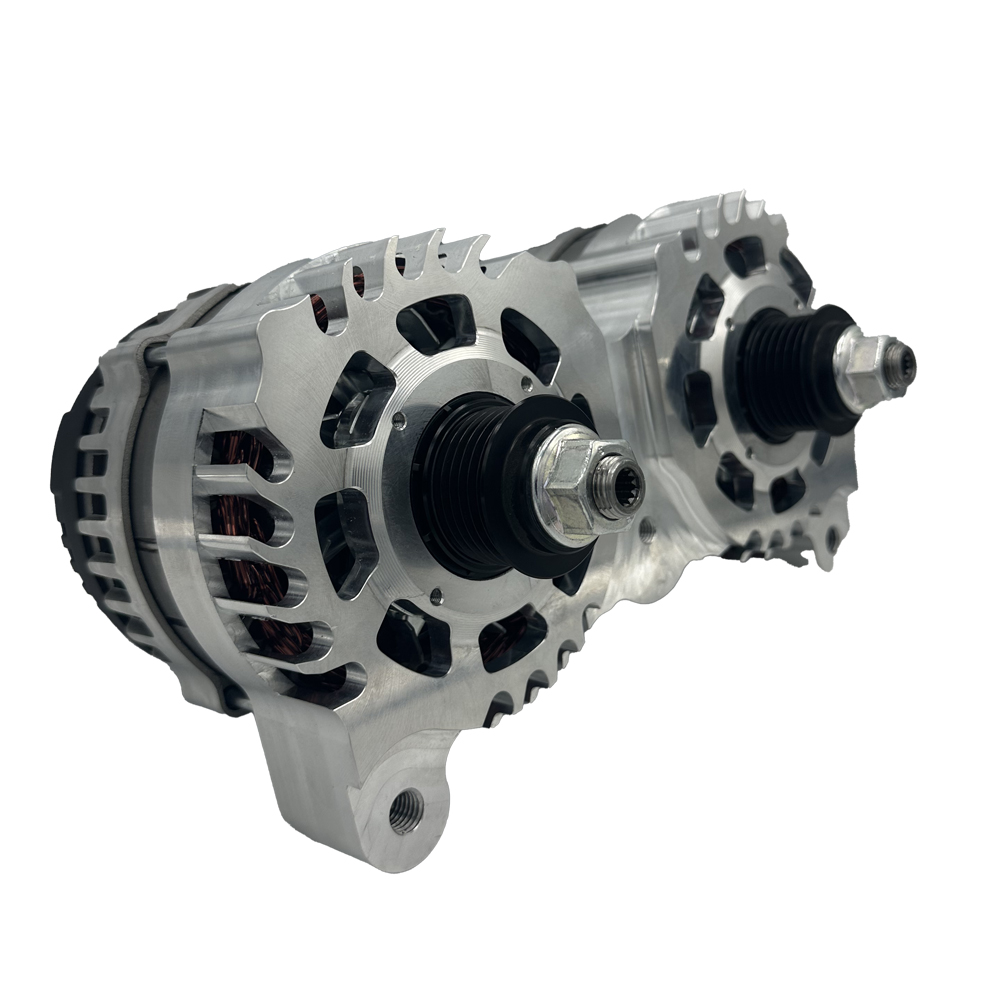

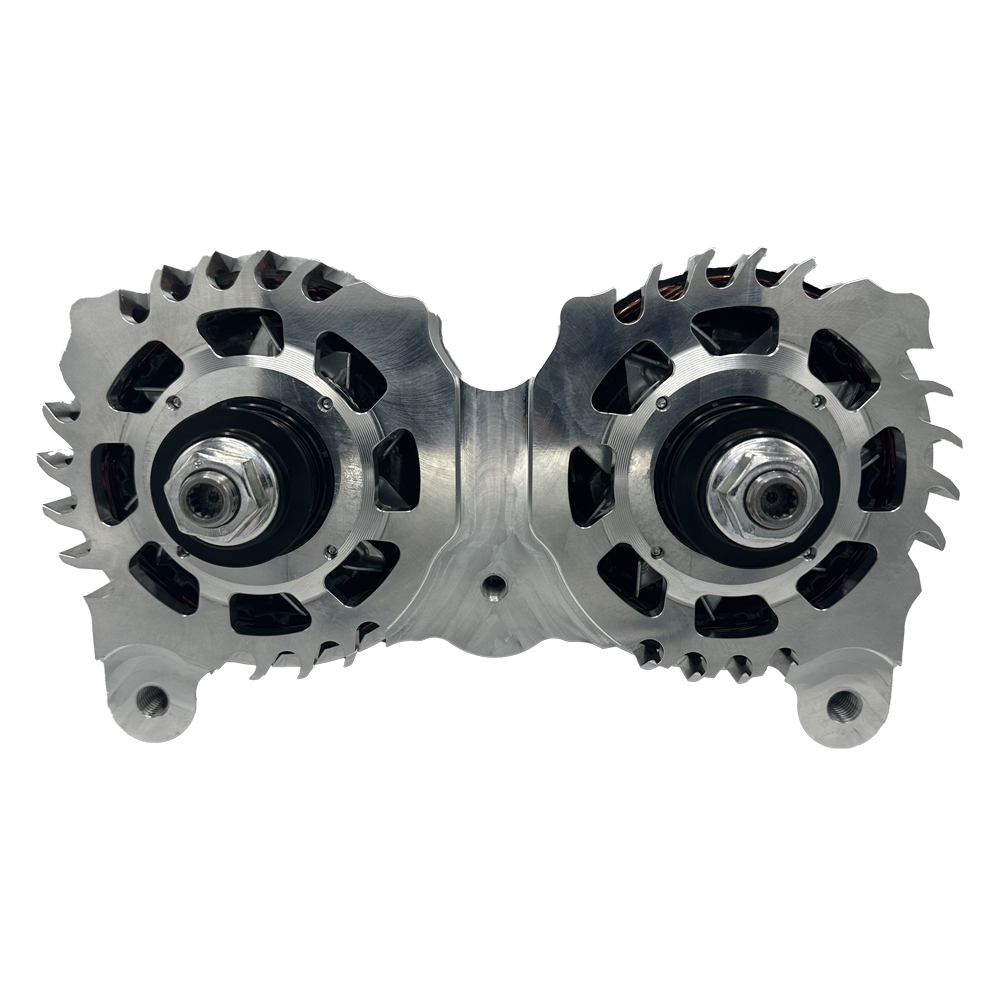

TWIN 48/56V 200 Amps - Image 2

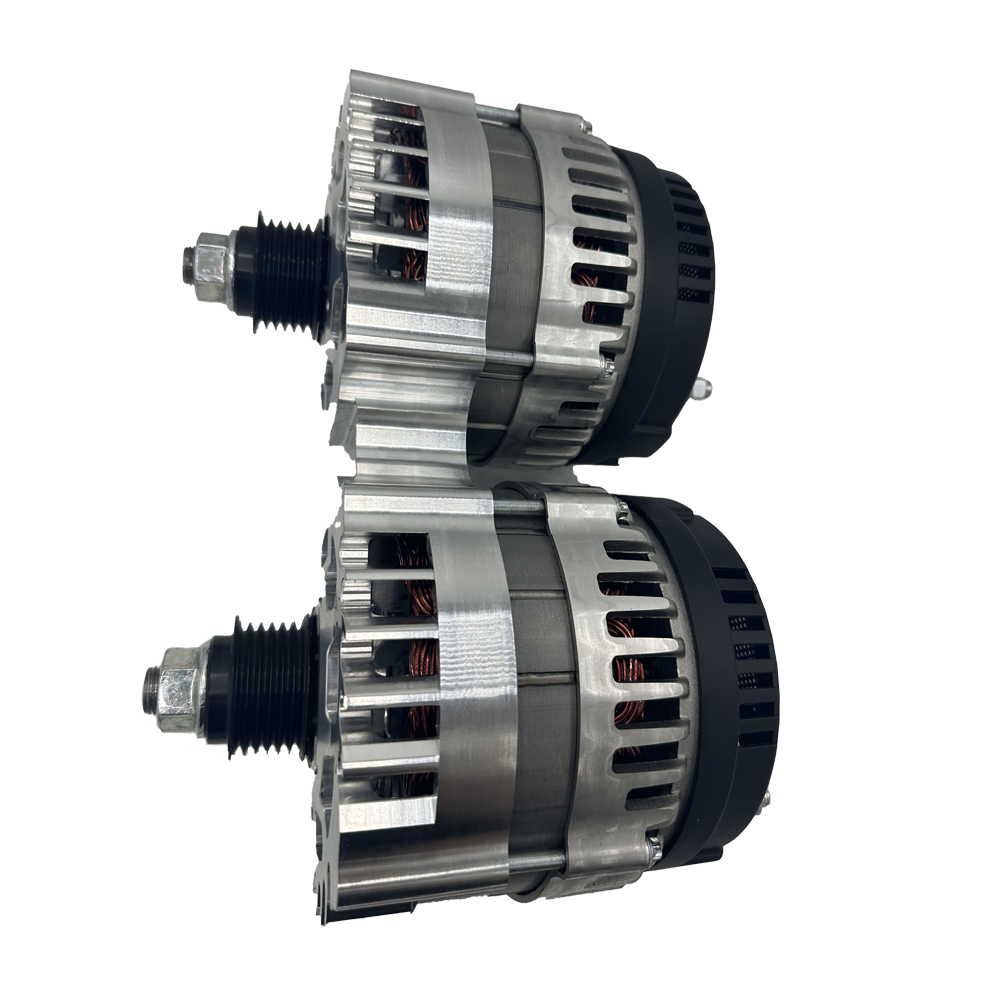

TWIN 48/56V 200 Amps - Image 3

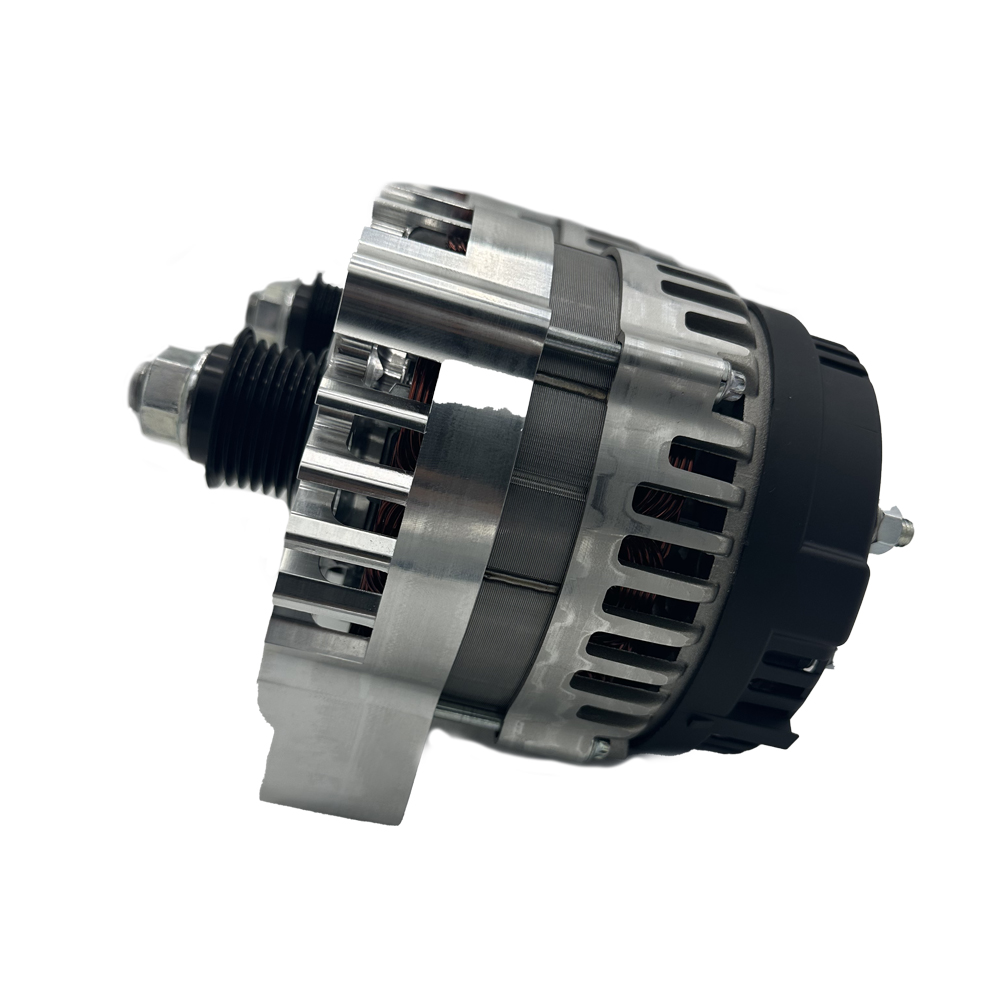

TWIN 48/56V 200 Amps - Image 4

The SBC-D48V-200 is a 48 Volt TWIN series alternator specifically engineered for use with SBC multi-alternator packages. Designed to be used with Balmar MC-620 external regulators.



Idle Output: 70 Amps
Max Output: 200 Amps
Voltage: 48 to 57 Volts

Add to Quote
SKU: 6fab6e3aa342-1-1-1-1-1-1-1-1-2-1-3-2-1-1-3-1-3-1-3-1-4-2-2-3-1-3-1-1-1-4-1-2-2 Category:

The SBC-D48V-200 heavy-duty 48V alternator generates a maximum of 200 amps and ~70 Amps at idle (may vary between applications and configurations).



Designed specifically to be used with the Balmar MC-620 external regulator, the SBC-D48V-200 can meet all charging requirements of LiFePO4 and Lithium-Ion batteries such as calibrated charging profiles and thermal and load protection.



This is required for optimal performance and reliability when using advanced battery systems.

Key specifications:



  • Idle Output: 70 Amps
  • Max Output: 200 Amps



applications:



  • GM AD244/DR44



Full specifications:



  • Output Voltage: 48
  • Maximum Amperage: 200
  • Amps @ Engine Idle: 70
  • Mounting: AD244/DR44
  • Rotation: Clockwise
  • Housing Material: 6061 Aircraft Grade Aluminum
  • Ground: Case
  • Regulation: External
